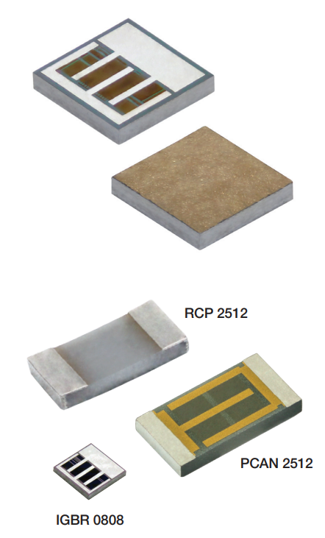

Vishay IGBR
Thin-Film, High Power Back-Contact Resistor
The IGBR series is an AEC-Q200 qualified thin film resistor that utilizes the excellent thermal properties of silicon to allow ultra high power rating in a miniature case size for sinterable and hybrid assemblies. The IGBR’s back contact design requires only one wire bond thus saving hybrid space. The IGBR’s are manufactured using Vishay Electro-Films (EFI) sophisticated thin film equipment and manufacturing technology. The IGBR’s are 100 % electrically tested and visually inspected to automotive, military, or commercial inspection per internal standards.
FEATURES
• AEC-Q200 qualified available, produced in ITAF 16949 certified facility
• Designed to operate at elevated temperatures up to 200 °C
• Noise reduction or elimination when used in SiC power modules
• Sintering, soldering, and epoxy attachment options
• Single wire bond assembly
• Moisture resistant
• Case size: 0202 to 0808
APPLICATIONS
• Current balancing resistor for SiC, GaN, and IGBT power modules
• Automotive electrification
• High power MRI
• Industrial HVAC
• Alternative energy
• LED lighting
• Hybrid assemblies
• Data management servers
