VPG Foil Resistors
VPG Foil Resistors has been a leader in manufacturing precision resistors using their unique Bulk Metal® Foil technology since 1978, offering exceptional performance with a typical temperature coefficient of resistance (TCR) of 0.14ppm/℃, a remarkable tolerance of ±0.005%, and impressive long-term stability of just 5ppm per year, or 10ppm over three years.

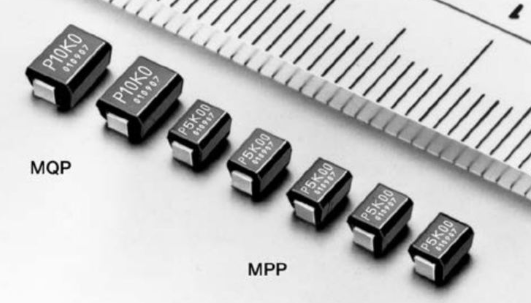

Ultra High-Precision Surface Mount Resistors
-
Temperature coefficient of resistance (TCR): 0.05 ppm/°C typical (0°C to +60°C) by New Generation Z-Foil Technology
0.2 ppm/°C typical (–55°C to +125°C, +25°C ref.)
Resistance tolerance: to ±0.01%
Power coefficient “∆R due to self heating”: 5 ppm at rated power (typical)
Power rating: to 200 mW (MPP) and 250 mW (MQP) at +70°C
Load life stability: to ±0.005% at 70°C, 2000h at rated power (typical)
Not restricted to standard values, we can supply specific “as required” values at no extra cost (e.g., 1K2345 vs. 1K)
